25C Multi-Rotor Drone LiPo Battery
Industrial-Grade UAV Power Systems for Commercial & Enterprise Applications
Product Description:
High-discharge lithium polymer battery packs engineered specifically for multi-rotor UAVs requiring stable, sustained power output under industrial flight loads.
Primary Applications:
Agricultural crop dusting drones, long-range industrial inspection copters, photogrammetry mapping UAVs, and heavy-payload delivery drones.
Target Customers:
Drone manufacturers, commercial fleet builders, and industrial UAV system integrators requiring reliable volume supply and custom electrical configurations.
Manufacturing Foundation:
Produced in our ISO9001-certified facility utilizing automated stacking lines, precision ultrasonic welding, and automated voltage/internal resistance sorting to ensure strict batch-to-batch consistency.
-
ManiaX Normal Lipo 6S-22.2V 13,000mAh 25C Drone & UAV Bat...Voltage: 6S1P-22.2VCapacity: 13,000mAhCont.Discharge rate: 25CCharging current: 1-3CDimensions: T:W:L=54*75*185mmWeight: about 1530gBalance connector: JST-XHRDischarge plug: XT90 & Optional
-
ManiaX Normal Lipo 12S-44.4V 22,000mAh 25C (brick) Drone ...Brand: ManiaXVoltage: 12S1P-44.4VCapacity: 22,000mAhCont.Discharge rate: 25CCharging current: 1-3CDimensions: T:W:L=140*91*205mmWeight: about 5400gBalance connector: JST-XHRDischarge plug: XT90/AS150
-
ManiaX Normal Lipo 12S-44.4V 16,000mAh 25C (brick) Drone ...- Brand: ManiaX. - Voltage: 12S1P-44.4V. - Capacity: 16,000mAh. - Cont.Discharge rate: 25C . - Charging current: 1-3C. - Dimensions: T:W:L=126*75*185mm. - Weight: about 3920g. - Balance connector:
-
ManiaX Normal Lipo 6S-22.2V 9000mAh 25C Drone & UAV BatteryTechnical specifications:. - Brand: ManiaX. - Voltage: 6S1P-22.2V. - Capacity: 9,000mAh. - Cont.Discharge rate: 25C . - Charging current: 1-3C. - Dimensions: T:W:L=59*50*175mm. - Weight: about 1145g.
-
ManiaX Normal Lipo 6S-22.2V 16,000mAh 25C Drone & UAV Bat...Brand: ManiaXVoltage: 6S1P-22.2VCapacity: 16,000mAhCont.Discharge rate: 25CCharging current: 1-3CDimensions: T:W:L=67*75*184mmWeight: about 1980gBalance connector: JST-XHRDischarge plug: XT90 &
-

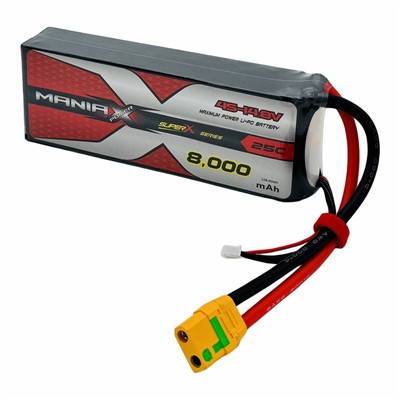

ManiaX Normal Lipo 4S-14.8V 8000mAh 25C Drone & UAV BatteryBrand: ManiaX. Voltage: 4S1P-14.8V. Capacity: 8,000mAh. Cont.Discharge rate: 25C . Charging current: 1-3C. Dimensions: T:W:L=34*60*166mm. Weight: about 730g
-

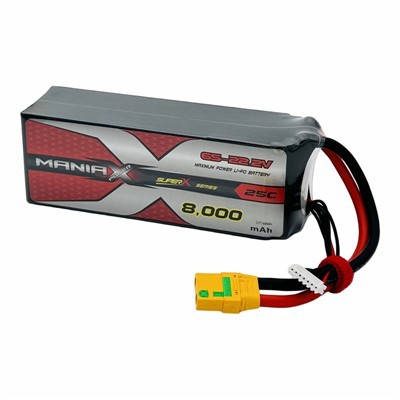

ManiaX Normal Lipo 6S-22.2V 8000mAh 25C Drone & UAV BatteryBrand: ManiaXVoltage: 6S1P-22.2VCapacity: 8,000mAhCont.Discharge rate: 25C Charging current: 1-3CDimensions: T:W:L=50*60*166mmWeight: about 1100gBalance connector: JST-XHRDischarge plug: XT90 &
-

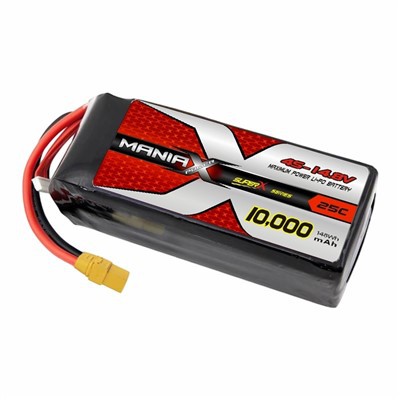

ManiaX Normal Lipo 4S-14.8V 10,000mAh 25C Drone & UAV Bat...Brand: ManiaXVoltage: 4S1P-14.8VCapacity: 10,000mAhCont.Discharge rate: 25C Charging current: 1-3CDimensions: T:W:L=40*60*172mmWeight: about 860gBalance connector: JST-XHRDischarge plug: XT90 &
-

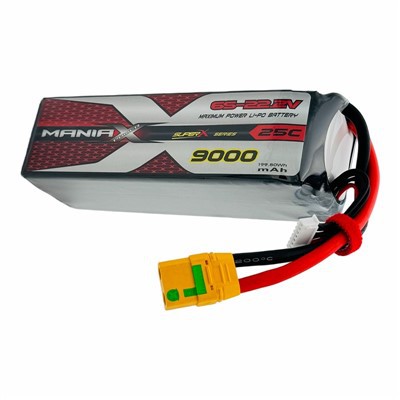

ManiaX Normal Lipo 4S-14.8V 9000mAh 25C Drone & UAV BatteryBrand: ManiaXVoltage: 6S1P-22.2VCapacity: 9,000mAhCont.Discharge rate: 25C Charging current: 1-3CDimensions: T:W:L=59*50*175mmWeight: about 1145gBalance connector: JST-XHRDischarge plug: XT90 &
-

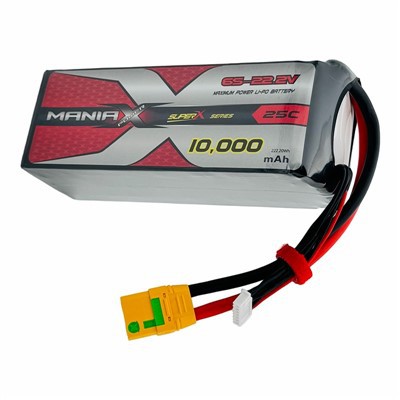

ManiaX Normal Lipo 6S-22.2V 10,000mAh 25C Drone & UAV Bat...Brand: ManiaXVoltage: 6S1P-22.2VCapacity: 10,000mAhCont.Discharge rate: 25C Charging current: 1-3CDimensions: T:W:L=60*60*172mmWeight: about 1300gBalance connector: JST-XHRDischarge plug: XT90 &
-

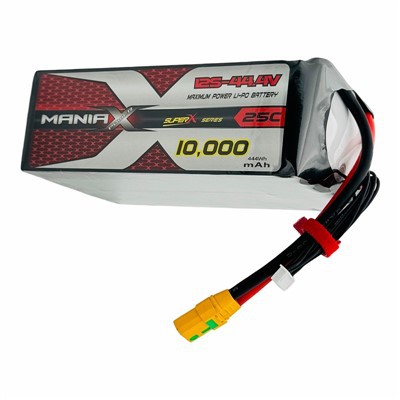

ManiaX Normal Lipo 12S-44.4V 10,000mAh 25C (brick) Drone ...Brand: ManiaXVoltage: 12S1P-44.4VCapacity: 10,000mAhCont.Discharge rate: 25C Charging current: 1-3CDimensions: T:W:L=116*60*172mmWeight: about 2520gBalance connector: JST-XHRDischarge plug: XT90 &
-

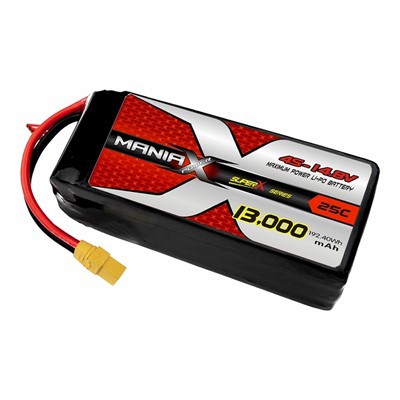

ManiaX Normal Lipo 4S-14.8V 13,000mAh 25C Drone & UAV Bat...Brand: ManiaXVoltage: 4S1P-14.8VCapacity: 13,000mAhCont.Discharge rate: 25CCharging current: 1-3CDimensions: T:W:L=36*75*185mmWeight: about 1025gBalance connector: JST-XHRDischarge plug: XT90 &
Key Features & Benefits
Stable 25C Continuous Discharge:
Engineered to deliver sustained current output with minimal voltage sag, ensuring stable motor RPM during critical flight maneuvers.
01
Optimized Energy-to-Weight Ratio:
High gravimetric energy density (Wh/kg) maximizes flight time without exceeding payload capacity limits.
02
Low Internal Resistance (IR):
Automated tab-welding and high-conductivity copper busbars reduce internal heat generation during high-amp draws.
03
Robust Thermal Management:
Multi-layer ceramic separator films and aluminum-laminated pouch packaging improve heat dissipation under heavy loads.
04
Extended Cycle Life:
Maintains over 80% of initial capacity after 400 standard charge-discharge cycles under recommended operating conditions.
05
Technical Specifications
|
Parameter |
Specification |
|
Chemistry |
Lithium Polymer (LiPo / LiCoO2 / NMC blend) |
|
Nominal Voltage |
22.2V (6S) to 44.4V (12S) |
|
Capacity Range |
10,000mAh to 30,000mAh |
|
Continuous Discharge Rate |
25C |
|
Burst Discharge Rate |
50C (10 seconds) |
|
Standard Charge Rate |
1C (Fast charge compatible up to 3C) |
|
Operating Temperature |
-10°C to 60°C (Discharging) / 0°C to 45°C (Charging) |
|
Discharge Connector |
AS150, XT90-S, QS8 (Customizable) |
|
Balance Plug |
JST-XH 2.54mm |
|
Wire Gauge & Length |
8AWG to 12AWG silicone wire (Length configurable) |
Applications
Agricultural Drones:
Powers multi-rotor crop sprayers requiring sustained hovering endurance over large fields.
Industrial Inspection:
Provides dependable power for power-line, wind turbine, and pipeline inspection UAVs operating in varied climate conditions.
Mapping & Surveying:
Supports long-duration photogrammetry flights where steady voltage is critical for gimbal and camera stability.
Search & Rescue:
Delivers reliable low-temperature performance for emergency response UAV operations.
Customization (OEM/ODM)
We support full engineering customization to match specific UAV airframe electrical and physical requirements:
Electrical Configuration:
Cell series/parallel setups (e.g., 6S1P, 12S1P) and custom voltage thresholds.
Physical Dimensions:
Tailored length, width, thickness, and soft-pack or hard-case enclosures to fit designated battery bays.


Connectors & Harnesses:
Pre-installed anti-spark connectors, custom wire gauges, and integrated power management leads.
Labeling & Branding:
Laser-etched barcodes, OEM logo printing, and custom specification sleeve labeling.
Quality & Safety
Cell Sorting:
Automated grading matches cells within ±1mV voltage and ±0.5mΩ internal resistance to prevent cell imbalance during discharge.
Strict Testing Regimen:
100% factory testing including vibration tests, thermal shock tests, overcharge/over-discharge protection testing, and capacity grading.
Safety Certifications:
Cells and packs comply with UL1642, CE, and RoHS standards.
Transport Compliance:
UN38.3 certified for safe air and ocean freight transport, complete with MSDS documentation.
Packaging & Supply
Packaging:
Individual anti-static shielding bags, reinforced inner carton boxes, and UN-rated outer dangerous goods packaging to prevent transit damage.
Minimum Order Quantity (MOQ):
50 units for standard models; 200 units for custom OEM configurations.
Lead Time:
7 to 10 business days for standard stock samples; 20 to 25 days for volume production runs.
Production Capacity:
50,000 battery packs monthly with automated cell matching and pack assembly lines.
Frequently Asked Questions

Request a Quote & Technical Support
Ready to evaluate samples or discuss custom specifications for your drone program? Contact our engineering team with your voltage, capacity, and discharge requirements.
Response Time: Within 24 business hours.
Deliverables: Formal quotation, 2D technical drawing, and UN38.3 test summary.
