High-Performance Transmitter & Receiver LiPo Battery Packs



High-density lithium polymer battery packs engineered specifically for RC radio transmitters and onboard receiver systems. Built with low-internal-resistance (Low-IR) stacked lithium polymer cells to ensure stable voltage delivery, minimal voltage sag under heavy RF module loads, and reliable runtime during extended operation sessions.

Target Applications: Surface and air RC transmitters, nitro/gas vehicle receiver systems, FPV ground stations, and industrial handheld telemetry units.
Target Buyers: Equipment manufacturers, brand distributors, and wholesale commercial importers requiring reliable power packs with consistent batch performance.




  • 2S-7.4V 5000mAh 15C RX Lipo Battery
    Brand: ManiaXVoltage: 2S-7.4VCapacity: 5000mAhCont.Discharge rate: 15CBurst.Discharge rate: 30CCharging current: 1-3C Max 5CDimensions: T:W:L=21*43*135mmWeight: about 224gBalance connector:
  • ManiaX 2S-7.4V 2600mAh 45C RX Lipo Battery
    Brand: ManiaX. Voltage: 2S-7.4V. Capacity: 2600mAh. Cont.Discharge rate: 45C . Burst.Discharge rate: 90C. Charging current: 1-3C Max 5C. Dimensions: T:W:L=12*44*135mm. Weight: about 155g. Balance

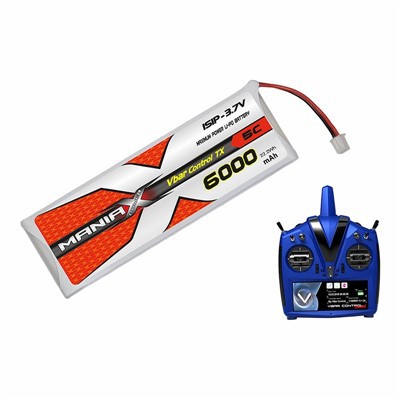

  • 1S1P-3.7V 6000mAH 5C Lipo Battery
    Brand: ManiaXVoltage: 1S1P-3.7VCapacity: 6000mAHCont.Discharge rate: 5C Burst.Discharge rate: 10CCharging current: 1-3C Max 5CDimensions: T:W:L=10*43*132mmWeight: about 116gBalance connector:

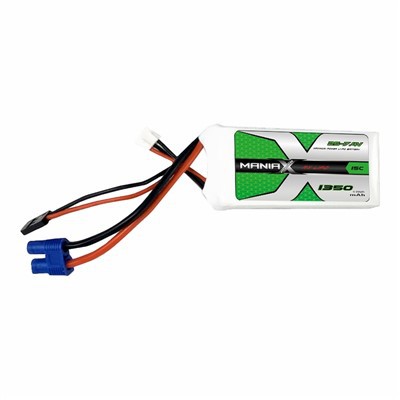

  • 2S-7.4V 1350mAh 15C RX Lipo Battery
    Brand: ManiaXVoltage: 2S-7.4VCapacity: 1350mAhCont.Discharge rate: 15C Burst.Discharge rate: 30CCharging current: 1-3C Max 5CDimensions: T:W:L=13*34*75mmWeight: about 76gBalance connector:

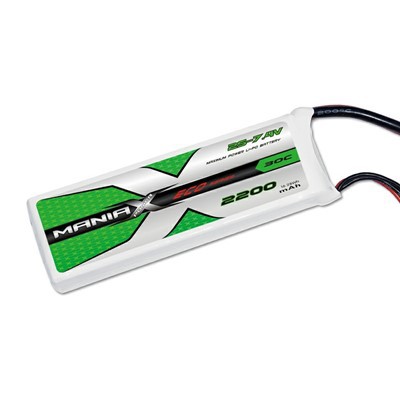

  • 2S-7.4V 2200mAh 30C RX Lipo Battery
    Brand: ManiaXVoltage: 2S-7.4VCapacity: 2200mAhCont.Discharge rate: 30C Burst.Discharge rate: 60CCharging current: 1-3C Max 5CDimensions: T:W:L=18*34*106mmWeight: about 120gBalance connector:

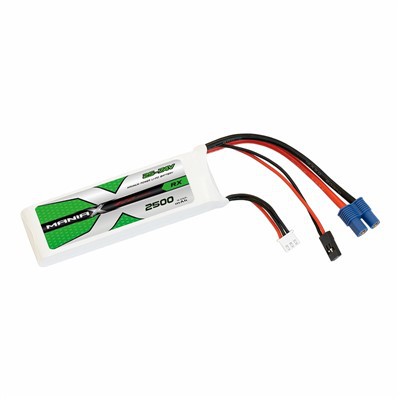

  • 2S-7.4V 2500mAh 5C RX Lipo Battery
    Brand: ManiaXVoltage: 2S-7.4VCapacity: 2500mAhCont.Discharge rate: 5C Burst.Discharge rate: 10CCharging current: 1-3C Max 5CDimensions: T:W:L=18*30*98mmWeight: about 105gBalance connector:

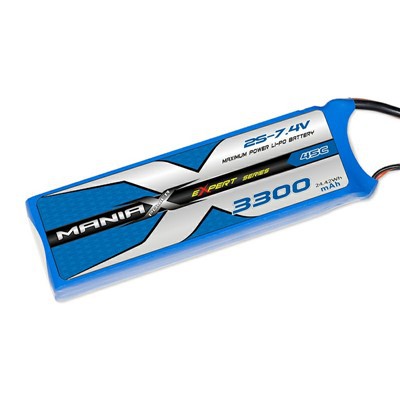

  • 2S-7.4V 3300mAh 45C RX Lipo Battery
    Brand: ManiaXVoltage: 2S-7.4VCapacity: 3300mAhCont.Discharge rate: 45C Burst.Discharge rate: 90CCharging current: 1-3C Max 5CDimensions: T:W:L=16*44*135mmWeight: about 180gBalance connector:

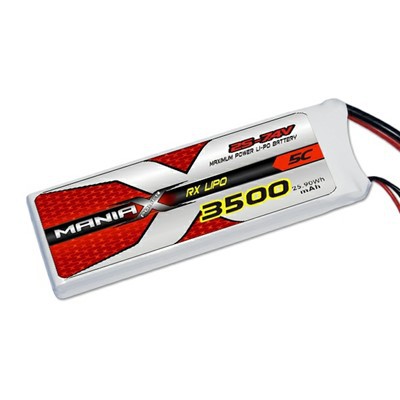

  • 2S-7.4V 3500mAh 5C RX Lipo Battery
    Brand: ManiaXVoltage: 2S-7.4VCapacity: 3500mAhCont.Discharge rate: 5C Burst.Discharge rate: 10CCharging current: 1-3C Max 5CDimensions: T:W:L=16*44*88mmWeight: about 130gBalance connector:
  • 2S-7.4V 5200mAh 30C RX Lipo Battery
    Brand: ManiaXVoltage: 2S-7.4VCapacity: 5000mAhCont.Discharge rate: 15CBurst.Discharge rate: 30CCharging current: 1-3C Max 5CDimensions: T:W:L=20*44*135mmWeight: about 255gBalance connector:
  • 2S-7.4V 5300mAh 45C RX Lipo Battery
    Brand: ManiaXVoltage: 2S-7.4VCapacity: 5300mAhCont.Discharge rate: 45CBurst.Discharge rate: 90CCharging current: 1-3C Max 5CDimensions: T:W:L=22*44*135mmWeight: about 260gBalance connector:

Key Features & Benefits




Low Internal Resistance (Low-IR):

Automated tab-welding and high-purity copper busbars minimize resistive heat generation during peak current draws from 2.4GHz RF modules.




True Capacity Rating:

Rated using strict constant-current discharge testing at 1C down to cut-off voltage, avoiding inflated capacity claims.




Optimized Form Factors:

Engineered with slim profiles and flexible silicone wire leads to fit strict battery compartment tolerances in legacy and modern transmitters.




Factory-Level Quality Traceability:

Every pack undergoes laser-welding inspection, ultrasonic sealing checks, and individual barcoded voltage/IR logging before packaging.





Technical Specifications





Parameter

Transmitter Packs (Typical Range)

Receiver Packs (Typical Range)

Chemistry

LiPo (3.7V/cell nominal) / LiHV (3.8V/cell nominal)

LiPo / LiFe (3.3V/cell for unregulated setup)

Configuration

2S1P (7.4V) / 3S1P (11.1V)

2S1P (7.4V)

Capacity

2000mAh to 5500mAh

1200mAh to 3000mAh

Discharge Rate

5C to 15C continuous

5C to 10C continuous

Dimensions

Custom-to-fit (e.g., 95 x 30 x 16 mm)

Compact square/flat envelope

Weight

85g to 210g

45g to 110g

Wire Gauge

22AWG to 18AWG silicone wire

24AWG to 22AWG silicone wire

Connectors

JST, JR, Futaba, XT30, or custom molded plugs

Universal JR / JST-XH balance leads



Applications & Operating Environments


Surface Transmitters:

Pistol-grip and stick transmitters for RC cars, trucks, and surface boats requiring steady low-drain longevity.

Air Transmitters:

Multi-protocol radio controllers used in fixed-wing aircraft and multirotors where battery reliability directly impacts radio link stability.

Onboard Receiver Power:

Powering high-torque digital servos and flight stabilization gyros in nitro, gasoline, and large-scale glider models.

Industrial Telemetry:

Portable monitoring boxes and handheld industrial crane controllers operating in moderate temperature ranges (-10°C to 55°C).





Customization (OEM / ODM)

Engineering customization options based on exact electrical and mechanical specifications:

Cell Geometry:

Tailored length, width, and thickness to fit custom molded transmitter battery bays.



Electrical Configuration:

Custom voltage steps, specific discharge C-ratings, and integrated PCM/BMS protection circuits if required.

Wiring & Harness:

Custom wire length, heavy-duty silicone insulation, and pre-soldered connector types (XT30, JST, Deans, Tamiya, or proprietary housing).

Private Labeling:

Laser-engraved shrink wrap, custom warning label design, and branded retail box packaging.



2S-7.4V 1350mAh 15C RX Lipo Battery



Quality Control & Safety Compliance

Reliability in lithium polymer chemistry relies on strict manufacturing controls:
Automated Production: Stacking-process automated winding machines ensure uniform electrolyte saturation and eliminate internal wrinkling.


Rigorous Testing Protocol:

  • IR & Voltage Sorting: Automated grading matches cells within a 0.5 mΩ window to prevent internal imbalance.
  • Cycle Testing: Automated charge-discharge cyclers verify capacity retention over 300+ standard cycles.
  • Environmental Testing: Thermal chamber testing from -20°C to 60°C and vibration testing simulating transport and field use.


Certifications & Transport: UN38.3, MSDS, CE, and RoHS compliant. Packs are shipped at safe storage voltage (3.80V to 3.85V per cell) in accordance with international dangerous goods transport regulations.



Packaging & Supply Chain



Protective Packaging:

Individual anti-static shielding bags, dense foam padding, and reinforced export cartons to prevent puncture or crushing during transit.

01

Minimum Order Quantity (MOQ):

500 pcs per model for standard configurations; 1,000 pcs for custom OEM dimensions or specialized connectors.

02

Lead Time:

15 to 25 days upon sample approval and deposit receipt.

03

Shipping Terms:

EXW, FOB, CIF, or DDP via air/sea freight with full dangerous goods documentation support.

04





Frequently Asked Questions





Q: What is the recommended storage voltage if these batteries are kept in warehouse stock for long periods?

A: Store packs at 3.80V to 3.85V per cell in a temperature-controlled environment (15°C to 25°C). Check and maintain voltage every 3 months.

Q: Do you provide custom connectors soldered directly to the wire leads?

A: Yes. We stock a wide range of standard connectors (JST, JR, XT30, Futaba) and can source or accept customer-provided proprietary connectors for OEM orders.

Q: How do you ensure cell matching within multi-cell packs (2S/3S)?

A: Cells are sorted using automated grading equipment that pairs units with identical internal resistance, capacity, and open-circuit voltage to maximize pack lifespan and prevent premature imbalance.

Q: What is the typical cycle life before capacity drops below 80%?

A: Under standard 1C charging and discharge regimes within safe temperature limits, our transmitter packs maintain over 80% original capacity after 300 complete cycles.

Q: Are these packs equipped with built-in protection circuit modules (PCM)?

A: Standard transmitter and receiver packs typically use direct balance leads without active PCM to allow high peak servo current draws, but optional PCM integration is available upon request for low-drain telemetry applications.

Q: What shipping documentation do you provide for international air freight?

A: We supply complete UN38.3 test summaries, Material Safety Data Sheets (MSDS), and dangerous goods declaration documents to clear customs smoothly.



modular-1
Request a Quote & Technical Support

To receive a formal quotation, sample pricing, or engineering drawing reviews for custom battery integration:
Specify Required Parameters: Nominal voltage, capacity, maximum allowable dimensions (L x W x H), and preferred discharge connector.
Project Scope: Indicate whether this is for standard wholesale distribution or a custom OEM development project.

ManiaX Power Technology Co., Ltd. is one of the most reliable transmitter and receiver lipo battery manufacturers and suppliers in China, also supports customized service. Please feel free to wholesale bulk durable transmitter and receiver lipo battery made in China here from our factory.

2S 7 4V 3500mAh 5C RX Lipo Battery, 1S1P 3 7V 6000mAH 5C Lipo Battery, 2S 7 4V 5300mAh 45C RX Lipo Battery
